Metal global de Wuhan que projeta Co., Ltd
O fabricante pioneiro dos calefatores & dos sensores
Metal global de Wuhan que projeta Co., Ltd
O fabricante pioneiro dos calefatores & dos sensores
 |
| Lugar de origem: | China |
| Marca: | GME |
| Quantidade de ordem mínima: | 10 pcs |
|---|---|
| Detalhes da embalagem: | Embalagem exportada do caso |
| Tempo de entrega: | 2-3 semanas |
| Termos de pagamento: | L/C, T/T, Western Union, PayPal |
| Habilidade da fonte: | 100.000 PCs |
| Tipo: | O tipo J, K, T, E, N, S, RTD, personalizou | Faixa de temperatura: | 1600℃ máximo |
|---|---|---|---|
| Material protetor do tubo: | Aço inoxidável | Material da cabeça: | De alumínio, aço dos SS, baquelite, personalizada |
| Fiação: | 2-wiring, 3 fiação, 4 fiação, fiação 6, personalizada | ||
| Destacar: | PT100 Duplex RTD Sensor,6-wire RTD Sensor,Mineral insulated RTD Sensor |
||

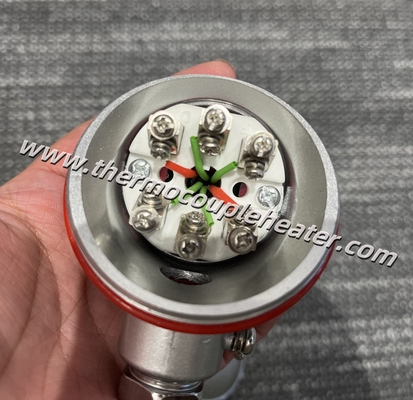

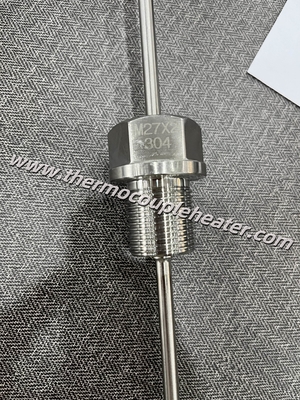

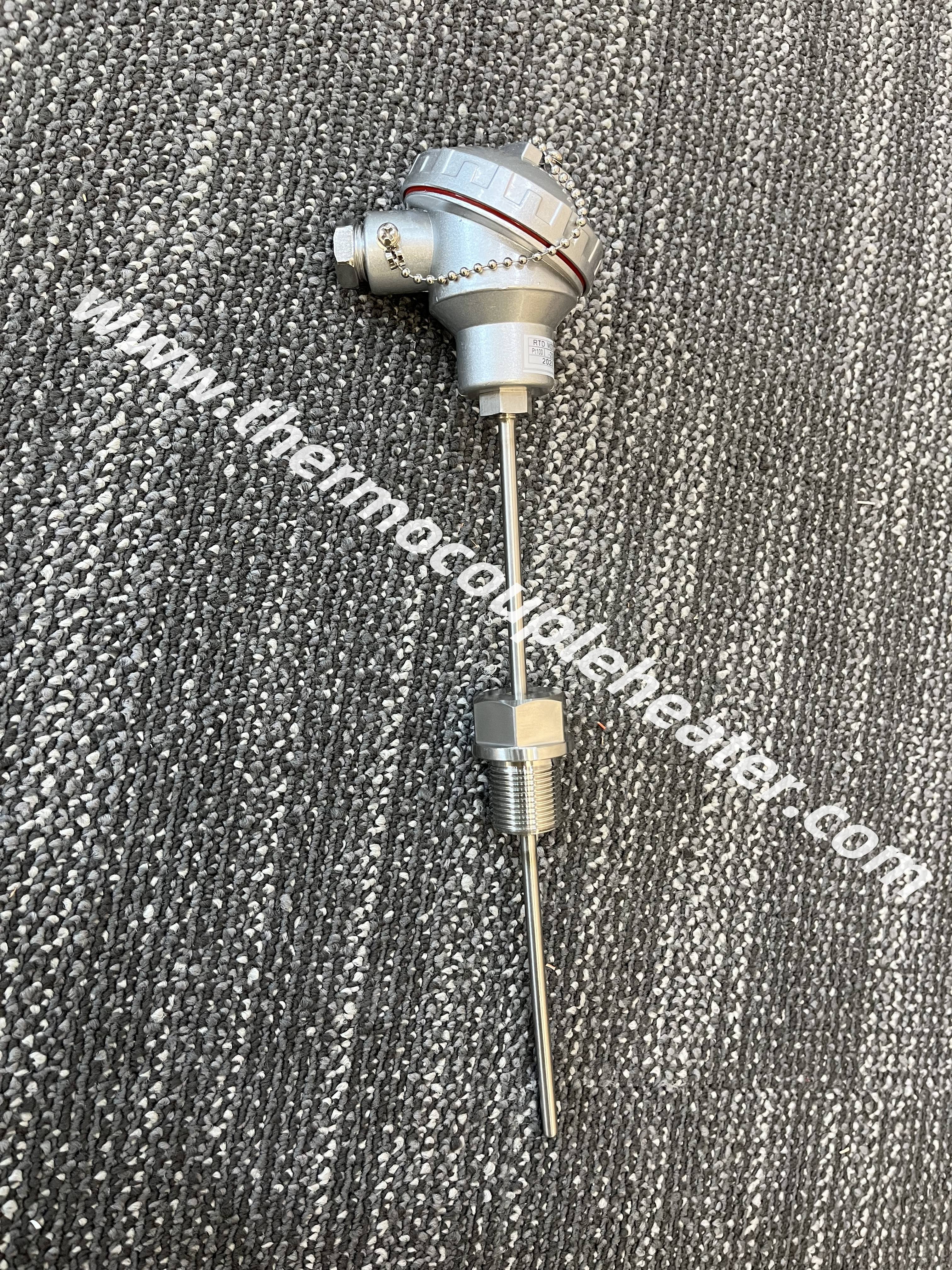

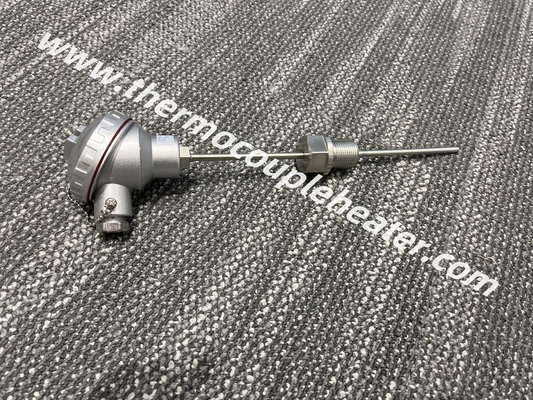

RTD Sensor Duplex PT100 Double Elements 6-wire Mineral insulated Probe
Product Features:
♦ Easy to install, several optional testing range
♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel
♦ Quick response, high accuracy
♦ Good long-term stability, low energy consumption,smart
Applicable Scope
♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
Technical Index
| Sensor | Type J, K, T, E, N, S, PT100, PT1000, customized |
| Thermowell | Available |
| Signal line specification | 2-wiring, 3-wiring, 4-wiring, 6-wiring, customized |
| Accuracy | Class 1, Class 2 |
| Testing range(°C) | Max 1600℃ |
| Probe diameter | Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm, customized |
| Response Time | T=50°C 2.3s;T=90°C 5.4s |
| Ambient Temperature | -40~+85°C |
| Storage Temperature | -40~+125°C |
| Environmental Protection | IP65 |
